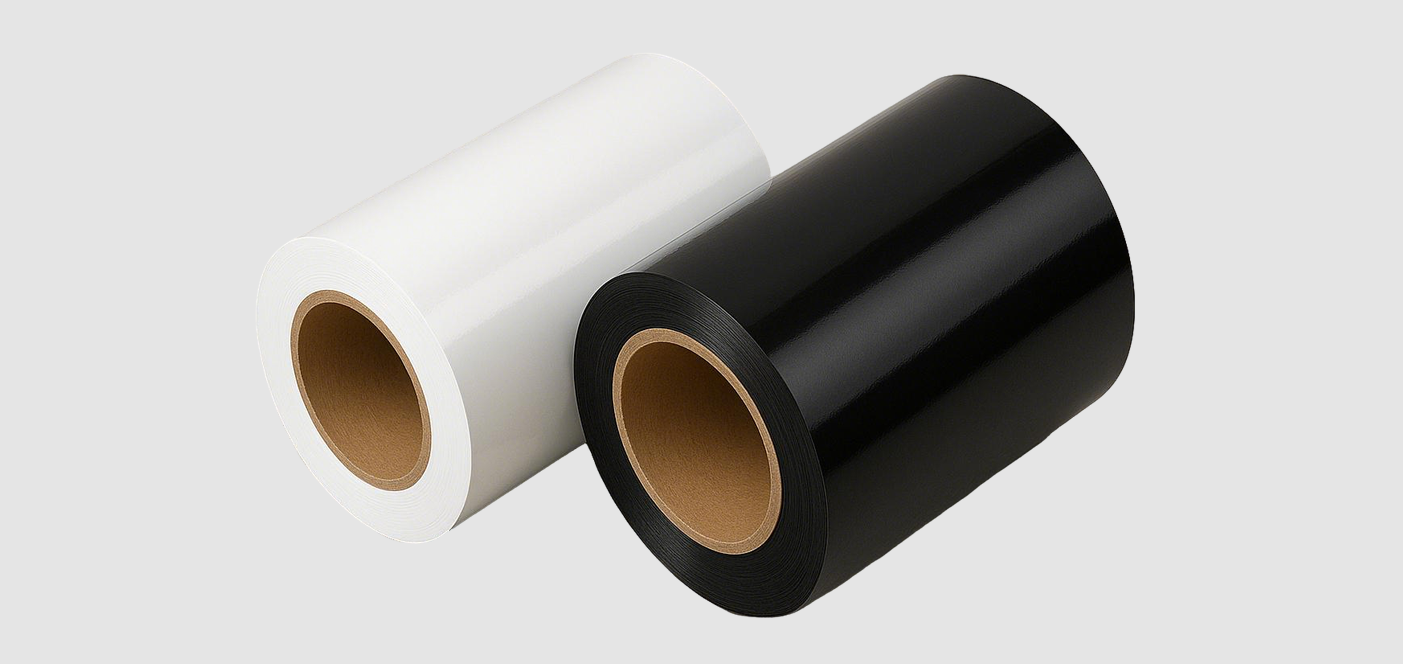

PIGMENT FOIL (TYPES: 7010 / 7020 / 7030)

Zhejiang (Shanghai) TNME Printing Material Co., Ltd.

Technical Data

Main Characteristics:

Strong opacity and sharp edges

Less powder on surface after stamping

Excellent abrasion resistance


Recommended Applications:

7010 Type: Suitable for hard plastics, wooden pencils, and synthetic leather

7020 Type: Suitable for cables, PVC, etc.

7030 Type: Suitable for paper and laminated films


Stamping Conditions:

Compatible Equipment: Vertical, flatbed, swing-arm, rotary stamping presses


Temperature Range:

110°C – 130°C

Dwell Time: 0.3 – 1.0 seconds


Stamping Tips:

Adjust temperature, dwell time, and pressure to find the best combination for optimal stamping results.

Ensure the die surface is clean.

Use make-ready materials to ensure even pressure

Make sure the ink on the substrate (if any) is fully dry before stamping


Standard Roll Format:

640mm × 120m

Custom sizes available upon request - please contact us for details.


Storage Conditions

Storage Environment

Temperature: 5°C – 35°C

Relative Humidity: 40% – 75%

Avoid direct sunlight, rain exposure, or environments with high temperature and humidity

It is recommended to store the foil in a dry and well-ventilated indoor warehouse


Prohibited Conditions

Keep away from heat sources (e.g., boilers, heaters, direct sunlight through windows)

Do not store with corrosive or volatile chemicals (e.g., solvents, acids, alkalis, etc.)

Avoid excessive stacking or heavy pressure that may cause foil deformation

If not used for a long period, keep the foil sealed in its original packaging


Shelf Life

Recommended to use within 12 months from the production date

Products beyond the shelf life should be tested in small batches to verify performance before bulk use


Pre-Use Recommendation

Before use, place the foil in the production environment for at least 24 hours to allow temperature and humidity balance, which helps ensure stable stamping performance
